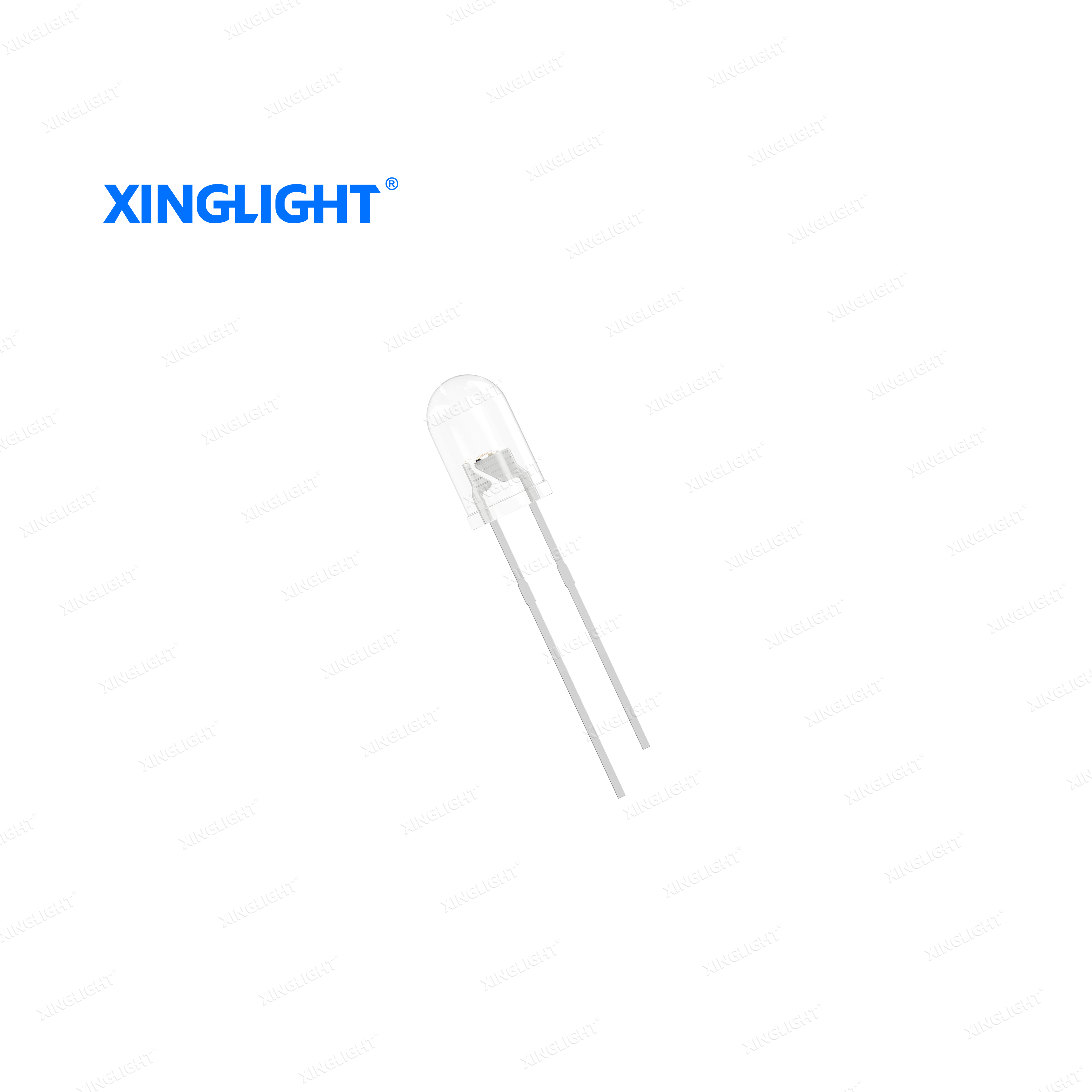

XL-502HIRC-850 is an F5-packaged 850nm infrared emitting diode, measuring 5.5×5.0×8.7×18mm with a transparent colloid. Compliant with ROHS and MSL Grade 2, it features high energy efficiency and fast startup, and is compatible with EIA standard packaging. It has a max continuous forward current of 30mA, peak pulse current of 100mA, forward voltage of 1.3-1.7V, typical radiant intensity of 40mW/Sr (IF=30mA), 35° viewing angle, and 2000V ESD protection. Operating temperature range is -20~+85℃ (storage: -40~+85℃), with soldering requirements of wave soldering 240℃≤6s or manual soldering 300℃≤3s (soldering point ≥2.0mm from the bottom of the colloid). Ideal for medical equipment, infrared remote controls, camera monitors, industrial control, infrared photoelectric switches, etc.
Appearance dimension: F5/5.5*5.0*8.7*18mm
Luminous color and colloid: infrared emission 850/Transparent colloid
Environmental protection products Complied With ROHS Directive
Moisture sensitivity level（MSL）： 2 levels
EIA standard packaging
Suitable for infrared reflow soldering process
Medical equipment
Infrared remote controller
Camera monitoring head
Industrial control: counters, thermal imaging, smart meter
Infrared photoelectric switch
Wireless communication and signal transmission
Intelligent car, robot
