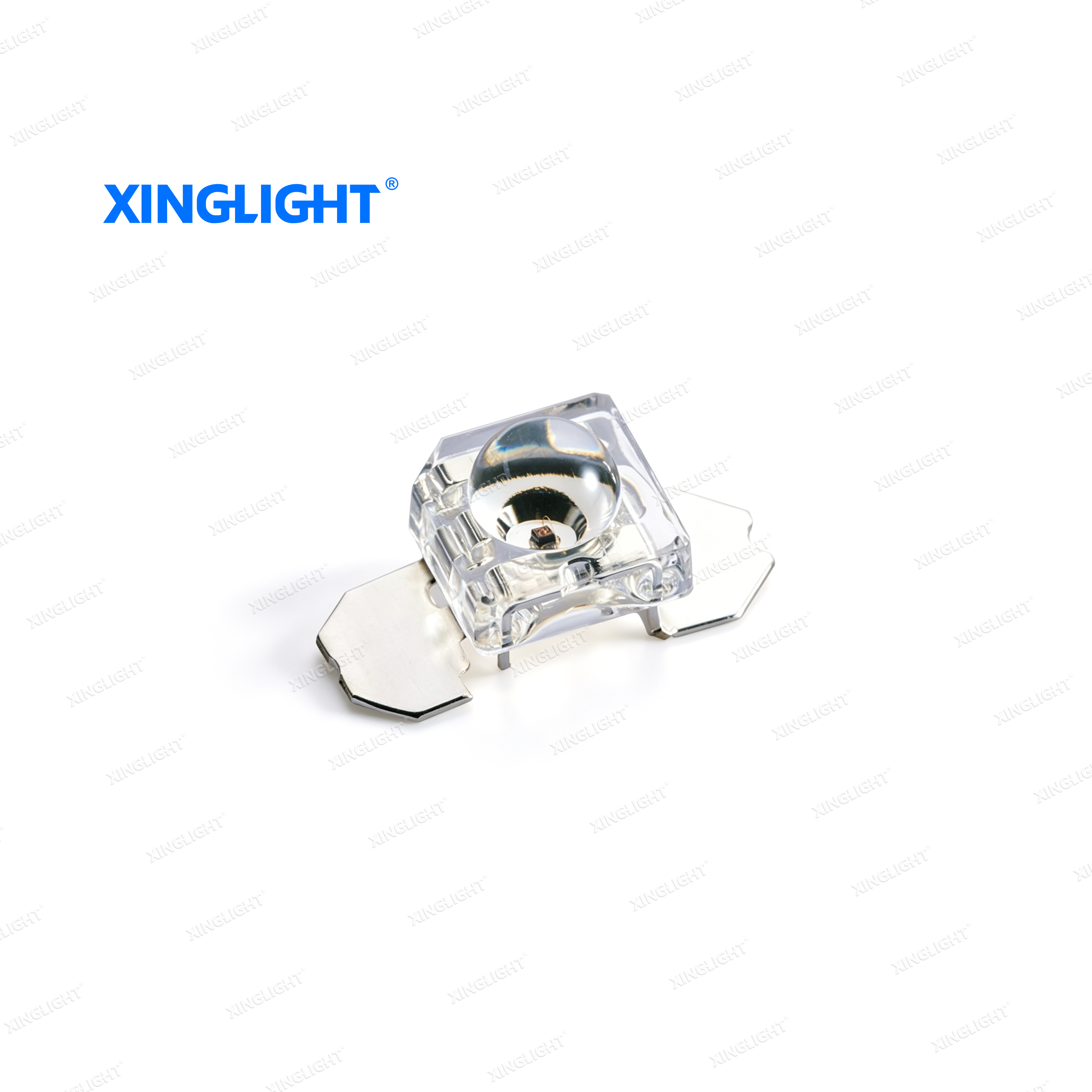

The SSL150-NO88-Y is a yellow LED in a 5mm through-hole piranha package with a clear lens, measuring 7.6×7.6×2.5×5.0mm. It’s a two-pin 0.5W LED that meets ROHS environmental standards and has a moisture sensitivity level of MSL 2. It features high brightness, long lifespan, low voltage DC drive, and fast start-up, with a wide 90° beam angle that makes it great for visibility from multiple directions.
Optical Performance:
Emission Color: Yellow (transparent colloid)
Peak Wavelength (λd): 585~595nm (typical 588nm)
Luminous Intensity (IV): 5000~8000mcd (@150mA)
Viewing Angle (2θ1/2): 90° (wide angle)
Electrical Parameters (Ta=25°C):
Power Consumption: 500mW
Maximum Forward Current (IF): 150mA
Forward Pulse Current (IFp): 600mA
Forward Voltage (VF): 1.8~2.4V (@150mA)
Reverse Current (IR): ≤10μA (VR=5V)
Environment & Reliability:
Operating Temperature: -20℃~85℃
Storage Temperature: -40℃~85℃
Solder Heat Resistance: Wave soldering 240℃ ≤6s, manual soldering 300℃ ≤3s, soldering points should be at least 2.0mm away from the bottom of the colloid
Passed 1000-hour lifespan test, high temperature and humidity, thermal cycling (-40℃~100℃), and thermal shock (-45℃~105℃) reliability tests
Others:
Packaged in EIA standard moisture-proof and anti-static bags
Supports sorting by brightness, voltage, and wavelength to facilitate consistent batch selection
Outdoor Signage and Lighting: Backlit advertising light boxes, large-font luminous modules, city building outline lights, outdoor displays; especially suitable for yellow lights in traffic signals, with a wide angle to ensure visibility from multiple directions.
Industrial and Public Facilities: Status indicator lights on industrial equipment, emergency lighting, commercial lighting, indoor plant grow lights.
Consumer Electronics and Appliances: Decorative light strips for home appliances, work status indicator lights.
Automotive Lighting: Can be used for turn signals, brake lights, reverse lights, dashboard backlighting, etc. (yellow light is especially common in turn signals).
