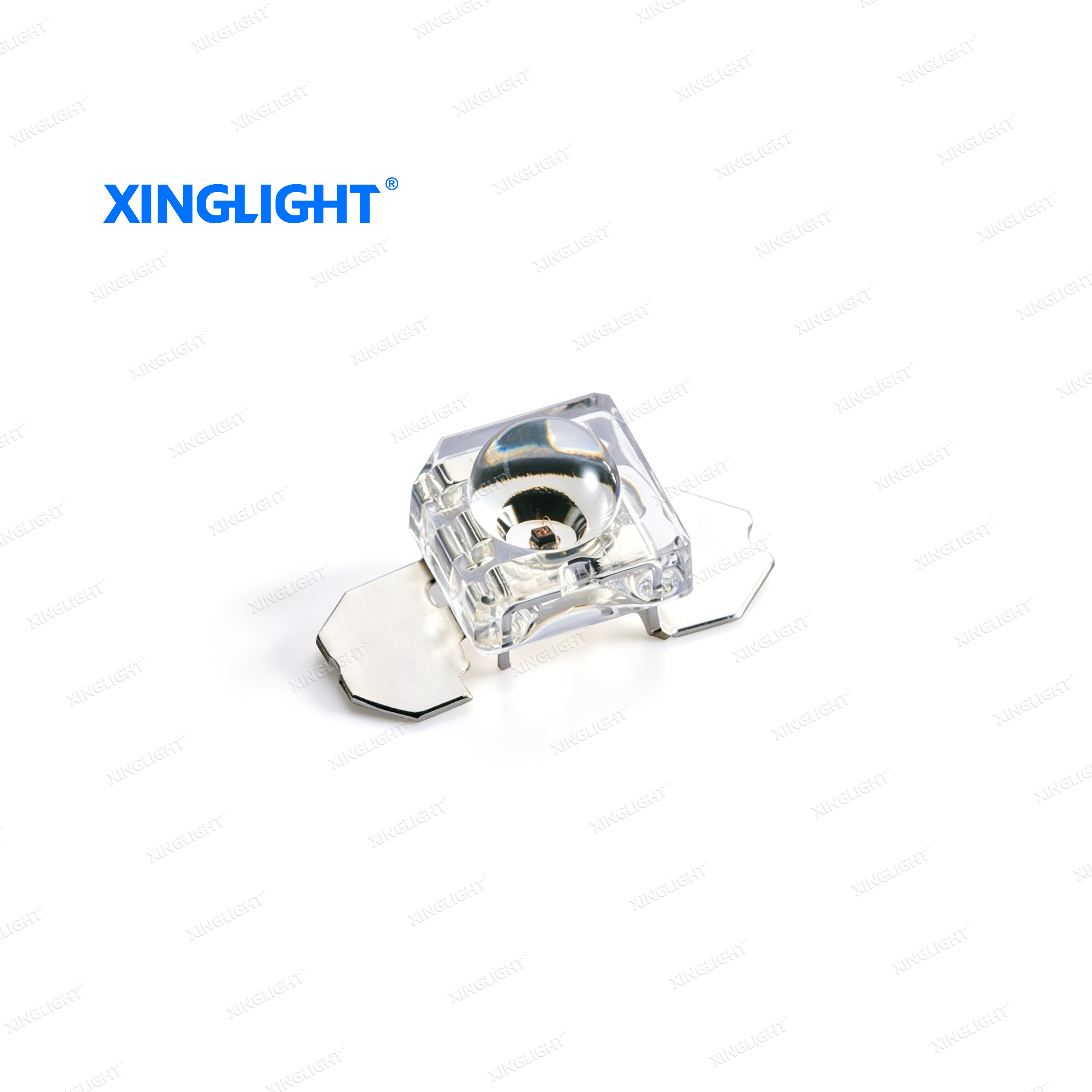

The XL-D76765SURC-A1 is a red, 5mm through-hole piranha-style LED with a clear epoxy casing, measuring 7.6×7.6×2.5×5.0mm. It's a two-pin, 0.5W LED that meets ROHS environmental standards and has a moisture sensitivity level of MSL 2. It features high brightness (typical 8000mcd), long life, low-voltage DC operation, and fast start-up. With a wide 90° beam angle, it performs great in various lighting and indicator applications.
Optical Performance:
Emitted Color: Red (transparent colloid)
Dominant Wavelength (λd): 615~635nm (typical peak 625nm)
Luminous Intensity (IV): 5000~8000mcd (@150mA)
Viewing Angle (2θ1/2): 90° (wide angle)
Spectral Width (Δλ): 20nm (typical)
Electrical Parameters (Ta=25℃):
Power Consumption: 500mW
Maximum Forward Current (IF): 150mA
Forward Pulse Current (IFp): 600mA
Forward Voltage (VF): 1.8~2.4V (@150mA)
Reverse Current (IR): ≤10μA (VR=5V)
Environment & Reliability:
Operating Temperature: -20℃~85℃
Storage Temperature: -40℃~85℃
Solder Heat Resistance: Wave soldering 240℃ ≤6s, manual soldering 300℃ ≤3s, solder joints should be more than 2.0mm from the bottom of the colloid
Passed reliability tests including 1000-hour lifespan, high temperature and humidity (85℃ / RH 85~90%), thermal cycling (-40℃~100℃), thermal shock (-45℃~105℃), and lead bending
Other:
Packaged in EIA standard moisture-proof and anti-static bags
Supports selection by brightness, voltage, and wavelength bins for batch consistency
Outdoor Signage and Lighting: Backlit advertising light boxes, large character luminous modules, city building contour lights, and outdoor displays; especially suitable for red lights in traffic signals, with wide angles ensuring visibility from multiple directions.
Industrial and Public Facilities: Indicator lights for industrial equipment, emergency lighting, commercial lighting, and indoor plant growth supplemental lighting.
Consumer Electronics and Home Appliances: Decorative light strips for household appliances, and work status indicator lights.
Automotive Lighting: Can be used for brake lights, turn signals, reverse lights, dashboard backlighting, and other key positions.
