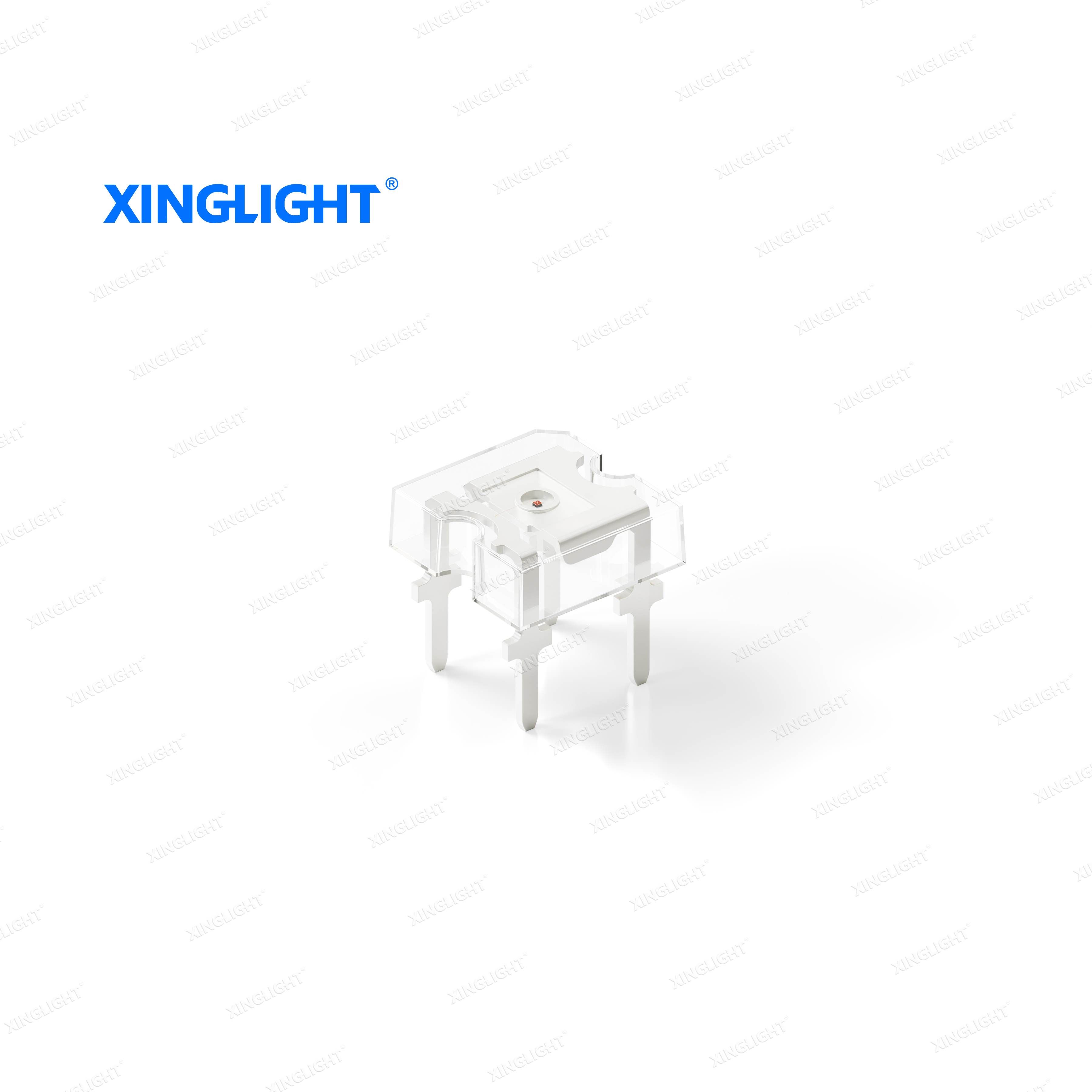

The XL-D7676UYC is a yellow LED with a straight pin piranha-style package (flat top), measuring 7.6×7.6×2.5mm in size (shorter than the rounded version). It uses transparent epoxy and meets ROHS environmental standards, with a moisture sensitivity rating of MSL 2. This LED has an extra-wide beam angle (140°), making it great for applications that need broad, even lighting, while keeping power and drive current low (200mW/60mA), making it suitable for energy-sensitive indicators and backlighting.
Optical Performance:
Emission Color: Yellow (transparent colloid, flat-top package)
Dominant Wavelength (λd): 585~595nm (typical peak 588nm)
Luminous Intensity (IV): 2000~3000mcd (@60mA)
Viewing Angle (2θ1/2): 140° (extra wide angle, better than conventional 90° models)
Spectral Half-Width (Δλ): 20nm (typical)
Electrical Parameters (Ta=25℃):
Power Consumption: 200mW (lower than 0.5W models)
Max Forward Current (IF): 60mA
Forward Pulse Current (IFp): 240mA
Forward Voltage (VF): 1.8~2.4V (@60mA)
Reverse Current (IR): ≤10μA (VR=5V)
Environment and Reliability:
Operating Temperature: -20℃~85℃
Storage Temperature: -40℃~85℃
Soldering Heat Resistance: Wave soldering 240℃ ≤6s, manual soldering 300℃ ≤3s, solder joint must be at least 2.0mm above the bottom of the colloid
Passed 1000-hour lifespan test, high temperature & high humidity (85℃/RH 85~90%), thermal cycling (-40℃~100℃), thermal shock (-45℃~105℃), and lead bending reliability tests
Others:
Packaged in EIA standard moisture-proof and anti-static bags
Supports screening by brightness, voltage, and wavelength to facilitate batch consistency selection
Outdoor Signage and Lighting: Backlights for advertising light boxes, large-font luminous modules, outline lights for city buildings, outdoor displays; especially suitable for backlight or contour lighting scenes that require wide-angle, uniform light output, as well as the yellow light in traffic signals.
Industrial and Public Facilities: Industrial equipment status indicator lights, emergency lighting, commercial lighting, indoor plant supplemental lighting.
Consumer Electronics and Home Appliances: Decorative light strips for home appliances, work status indicator lights (flat-head design makes the light softer and more widespread).
Automotive Lighting: Can be used for instrument panel backlighting, interior ambient lights, turn signals, and other areas that require a wider light angle.
