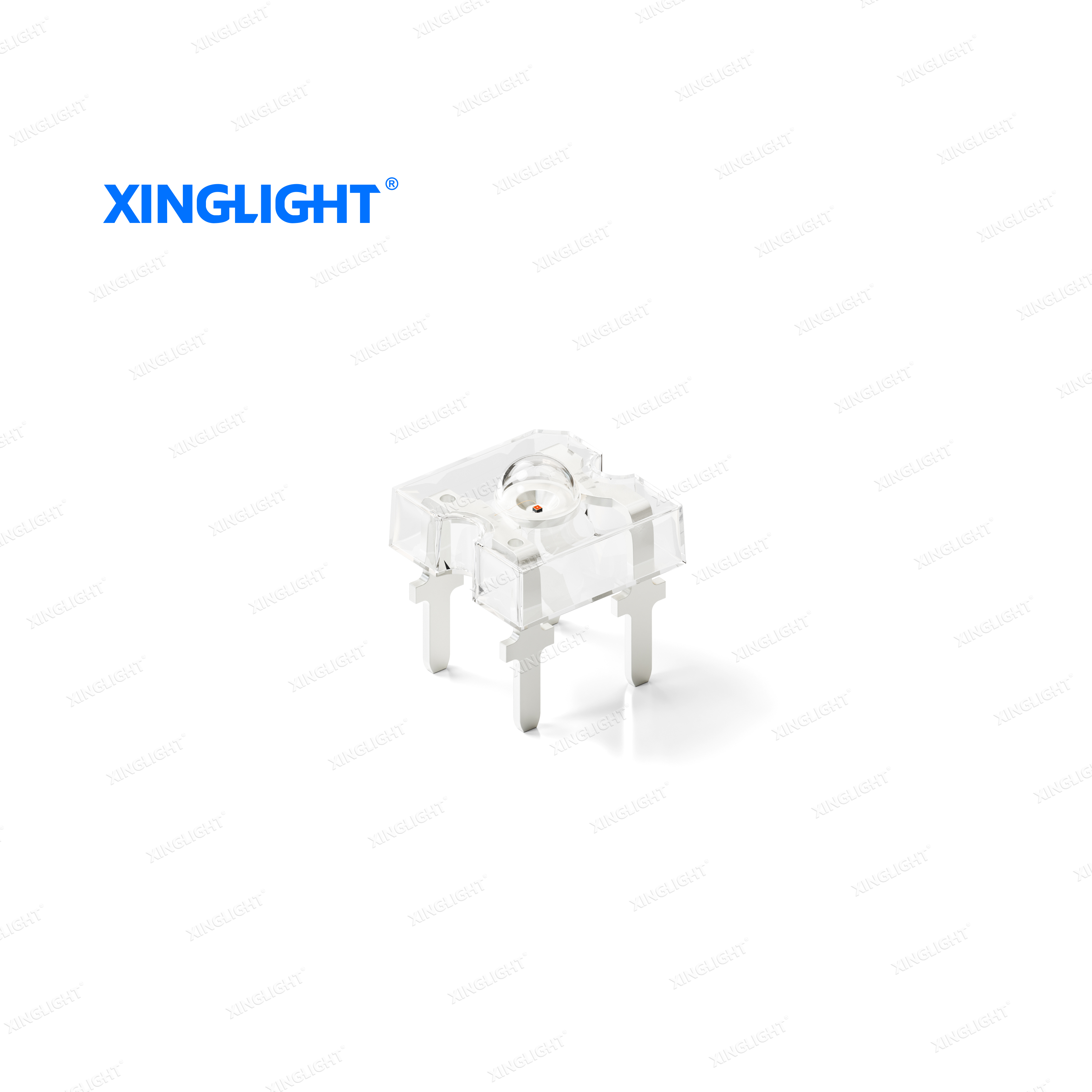

The XL-D76763UYC is a yellow LED in a through-hole piranha package. It has an F3 type dome (round top) design and measures 7.6×7.6×2.5×3.0mm (shorter in height than the F5 model, saving vertical space). It uses a clear epoxy, meets RoHS environmental standards, and has a moisture sensitivity level of MSL 2. This device has low power consumption and driving current (200mW/60mA), offers a 120° beam angle, and a typical luminous intensity of 4000mcd. It provides good brightness at low power, making it suitable for confined spaces that need moderate light intensity for indication and lighting purposes.
Optical Performance:
Emitted Color: Yellow (transparent colloid, F3 round-top package)
Dominant Wavelength (λd): 585~595nm (typical peak at 588nm)
Luminous Intensity (IV): 3000~4000mcd (@60mA, typical 4000mcd)
Viewing Angle (2θ1/2): 120° (between F5 round-top 90° and flat-top 140°, balancing brightness and coverage)
Spectral Width (Δλ): 20nm (typical)
Electrical Parameters (Ta=25℃):
Power Consumption: 200mW
Maximum Forward Current (IF): 60mA
Forward Pulse Current (IFp): 240mA
Forward Voltage (VF): 1.8~2.4V (@60mA)
Reverse Current (IR): ≤10μA (VR=5V)
Environment & Reliability:
Operating Temperature: -20℃~85℃
Storage Temperature: -40℃~85℃
Soldering Heat Resistance: Wave soldering 240℃≤6s, Manual soldering 300℃≤3s, solder joint must be at least 2.0mm above the bottom of the colloid
Passed 1000-hour lifespan test, high temperature and humidity (85℃/RH 85~90%), thermal cycling (-40℃~100℃), quick thermal shock (-45℃~105℃), and pin bend reliability tests
Others:
Packaged in EIA standard moisture-proof, anti-static bags
Supports sorting by brightness, voltage, and wavelength for batch consistency
Outdoor Signs & Lighting: Backlights for advertising light boxes, large-font luminous modules, outline lights for city buildings, outdoor screens; suitable for yellow lights in traffic signals, with a 120° angle for multi-directional visibility, and a shorter height for compact designs.
Industrial & Public Facilities: Status indicator lights for industrial equipment, emergency lighting, commercial lighting, indoor plant supplemental lighting.
Consumer Electronics & Home Appliances: Decorative light strips for home appliances, work status indicator lights (F3 short-head design fits slim devices).
Automotive Lighting: Can be used for dashboard backlighting, interior indicator lights, turn signals, etc. (sufficient light intensity, space-saving height).
